为 Open Harmony 编译 Application

Introduction

我下载了 OpenHarmony-4.1.2 的 SDK,然后编译了 Hihope/dayu210,并把把生成的镜像烧录到了我们的板子上,板子启动后,现在准备开发上层应用,但是 DevEco Studio 提供的 demo 直接跑不起来,需要做些改动。

这是华为官方的文档

environments

  • DevEco Studio: Build Version: 5.0.7.210, built on February 11, 2025
  • Soc: rk3588
  • Board: Custom Board
  • System SDK Version: 4.1.2

将 Demo 跑起来的详细步骤

创建工程

create_project

因为我们的 OpenHarmony-4.1.2 的 Sdk version 是 11,所以这边我们选择 11

config project
select empty ability

(Native C++) 是一样的配置,只是需要多加一个配置,参考配置 abiFilters (选的工程是 Native C++ 时)

重新创建的路径在:

ToolBar -> File -> New -> Create Project -> Empty Ability

下载 SDK

download sdk 1
download sdk 2

连接开发板

默认下载路径是在这里 C:\Users\username\AppData\Local\OpenHarmony\Sdk,打开 powershell 输入以下命令

.\11\toolchains\hdc.exe kill
.\11\toolchains\hdc.exe start
.\11\toolchains\hdc.exe shell

注意: 这里需要 start,不要直接 shell,直接 shell,DevEco Studio 那里会始终连不上。

  • Notes:
    • hdc 和功能和 adb 是一样的
    • Linux 上的 SDK 内编译出来的 hdc 在这里 OpenHarmony-4.1.2-Release/prebuilts/ohos-sdk/linux/11/toolchains/hdc

当 DevEco Studio 右上角的 device 下拉框中是这样时,代表板子连上了。

connect board

配置 abiFilters (选的工程是 Native C++ 时)

根据官方文档 最后所述,需要做如下配置

//<project>/MyApplication/build-profile.json5
{
  "app": {
  //...
    "products": [
      {
        //...
        "buildOption": {
          // ...
          "externalNativeOptions": {
            "abiFilters": ["arm64-v8a"]
          }
          // ...
        }
        //...
      }
    ]
  //...
  }
}

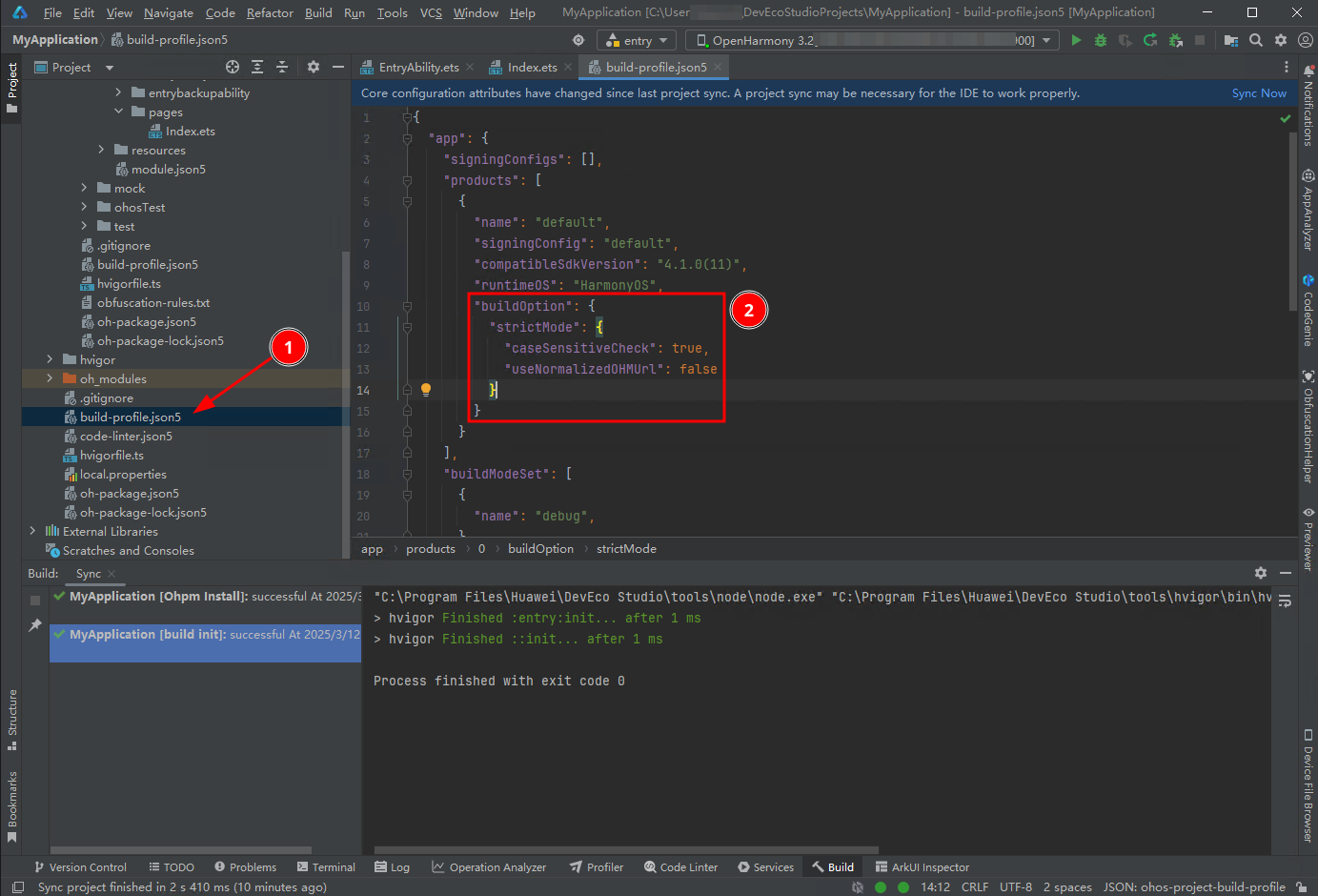

native cxx abi filters before

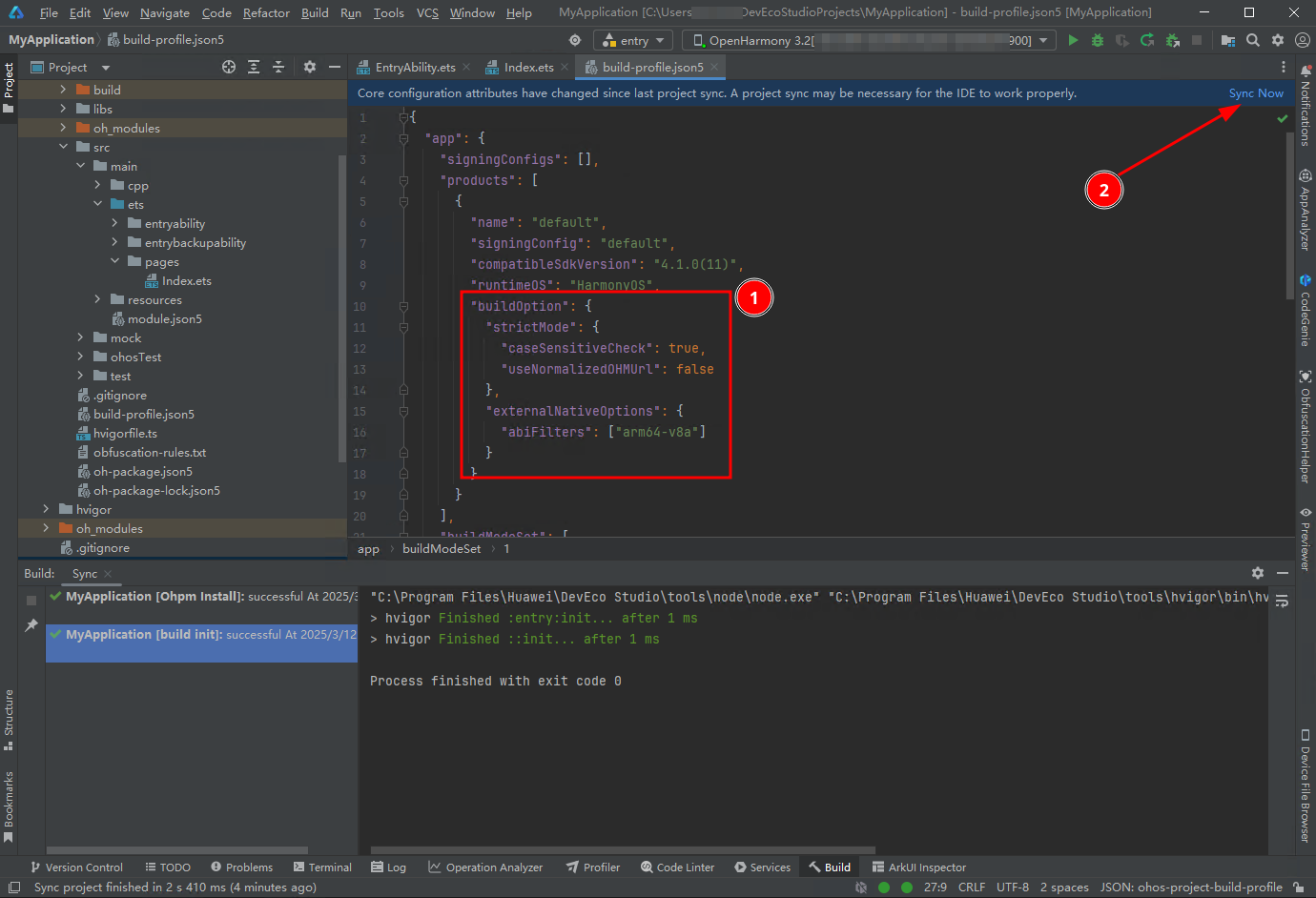

native cxx abi filters after

修改 runtimeOSOpenHarmony

根据华为官方文档的这节 我们需要配置 RuntimeOSOpenHarmony

//<project>/MyApplication/build-profile.json5
{
  "app": {
  //...
    "products": [
      {
        //...
        "compatibleSdkVersion": 11,
        "compileSdkVersion": 11,
        "runtimeOS": "OpenHarmony",
        //...
      }
    ]
  //...
  }
}

要把这块的配置

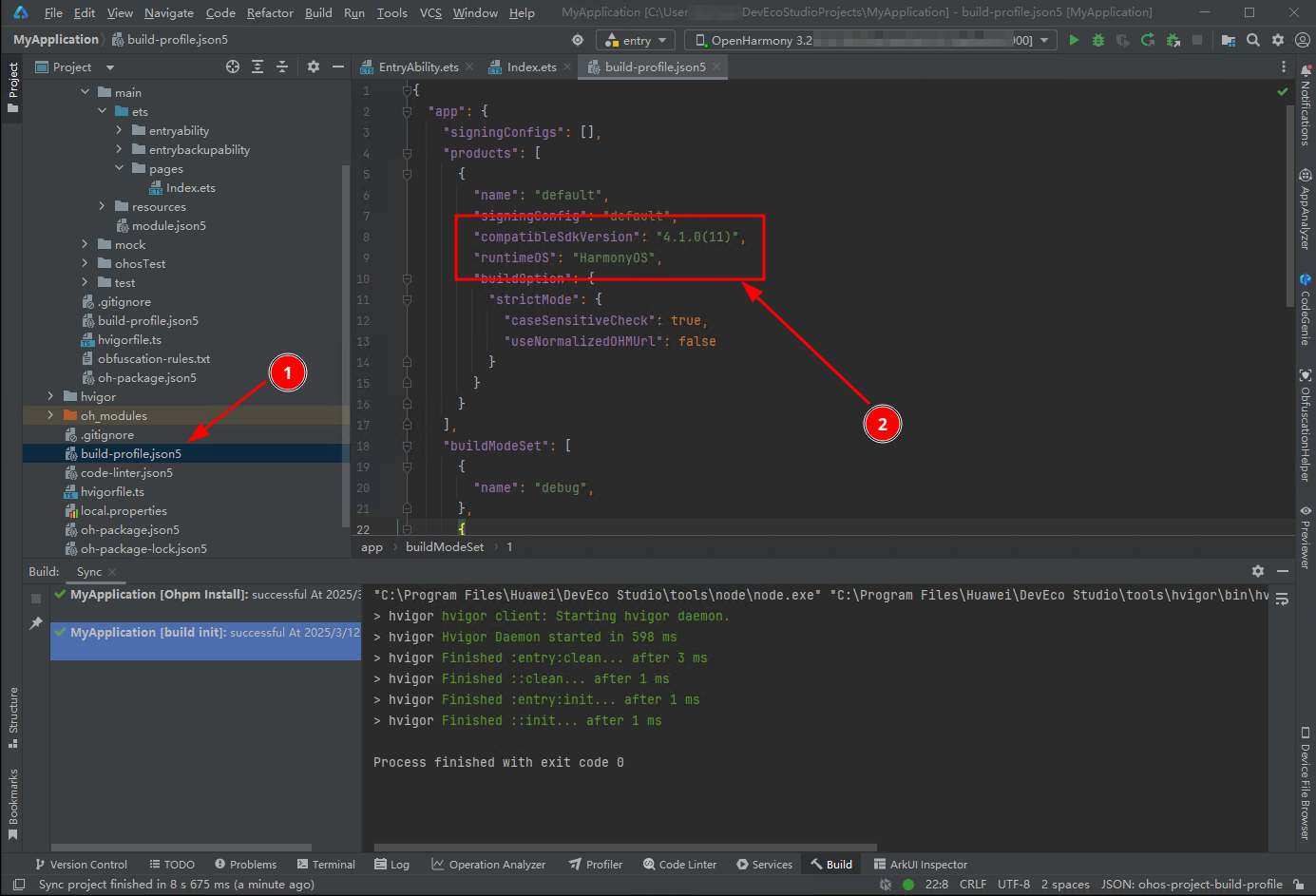

config with HMOS

改成:

config with OHOS

注意compatibleSdkVersion 字段在 runtimeOSHarmonyOS 时是 string 类型,但在 runtimeOSOpenHarmony 的时候,该字段为 int。

改完先不管 Linter 的报错,保存然后点右上角 “Sync Now”,会有弹窗,大概意思是要把板子类型改成 “default” 和 “tablet”,然后点 “Yes”。完了之后,Linter 的报错也会消失。

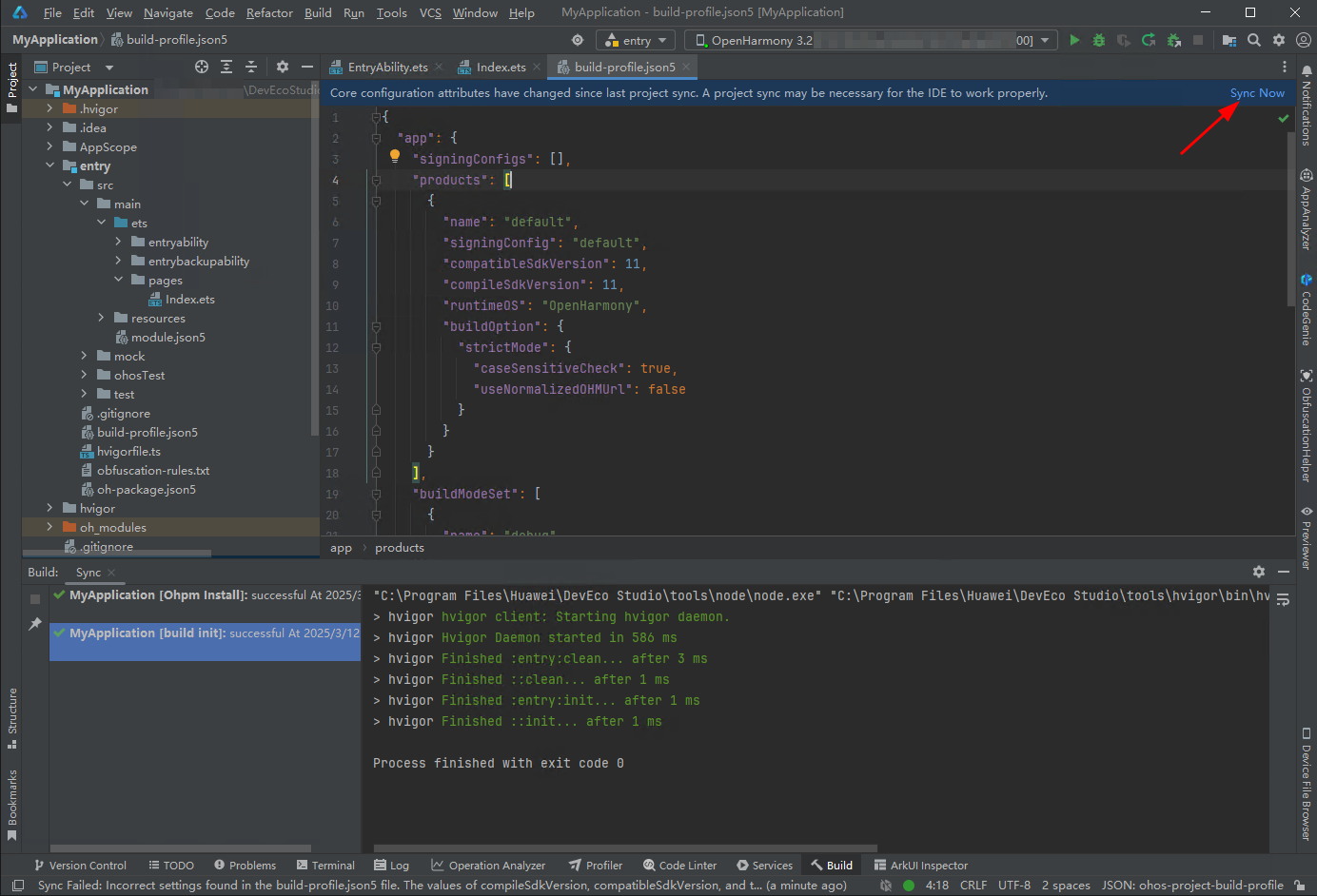

sync now

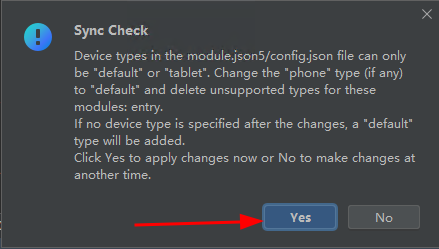

click yes

否则这里会报 Sign 之类的错误 TODO

配置 SYSCAP

参考

SYSCAP 大概是系统的能力,比如我是否支持 3D graphics 或者 refs TODO

去 Linux 下编译好的 SDK 里找 PCID.sc 文件,在以下几个目录(这几个文件都一样):

OpenHarmony-4.1.2-Release/out/rk3588/PCID.sc
OpenHarmony-4.1.2-Release/out/rk3588/obj/developtools/syscap_codec/out/rk3588/PCID.sc
OpenHarmony-4.1.2-Release/out/rk3588/packages/phone/system/etc/PCID.sc

在 DevEco 中导入上面的 PCID,导入方式,我没找到,但是可以通过 Help 直接跳过去,位置:

ToolBar -> Help -> Find Action -> "Import Product Compatibility ID"
import syscap 1
import syscap 2
import syscap 3
import syscap 4
import syscap 5
import syscap 6

完了之后,我们需要把最后的 SystemCapbility.Base 字段去除,它似乎不太兼容:

import syscap remove Base before

最后保存之后点 Sync Now

import syscap remove Base after

配置签名密钥

config signature 1

不要勾选 Support HarmonyOS,勾选 Automatically generate signature

config signature 2

将板子配置成 developer mode

refs

通过 hdc 连接到板子上,输入以下命令配置 developer mode。

param set const.security.developermode.state 1

build & run

直接点击右上角的播放符,开始编译然后运行,demo 就起来啦。

run

相关错误

code:9568320

不配置签名密钥报错:

Install Failed: error: failed to install bundle.
code:9568320
error: no signature file.

参考配置签名密钥

code:9568393

Install Failed: error: failed to install bundle.
code:9568393
error: verify code signature failed.
The target device does not work with apps with an OpenHarmony signature. Sign the app with a HarmonyOS signature before installing it on the device.

参考 修改 runtimeOSOpenHarmony

右下角弹窗 Please try to match the API version

Please try to match the API version of the device and the app. The current
device does not contain the following SysCap attributes in the rpcid.json file:
SystemCapability.ArkUi.Graphics3D. Make sure the device supports all the SysCap
attributes required for running the app.

参考 配置 SYSCAP

编译失败

> hvigor ERROR: Failed :entry:default@PreBuild...
> hvigor ERROR: Schema validate failed.
     Detail: Please check the following fields.
{
  instancePath: 'devices.custom[0].PCID[242]',
  keyword: 'pattern',
  params: {
    pattern: '^SystemCapability\\.[a-zA-Z0-9]+\\.[a-zA-Z0-9]+(\\.[a-zA-Z0-9]+){0,2}$'
  },
  message: 'must match pattern "^SystemCapability\\.[a-zA-Z0-9]+\\.[a-zA-Z0-9]+(\\.[a-zA-Z0-9]+){0,2}$"',
  location: 'C:/Users/kenexs/DevEcoStudioProjects/MyApplication2/entry/src/main/syscap.json:252:34'
}

> hvigor ERROR: BUILD FAILED in 203 ms

参考 配置 SYSCAP 去除 SystemCapbility.Base

error: failed to start ability.

error: failed to start ability.
Error while Launching ability

部分文章包括官方文档的 FAQ 说需要配置 module.json5 中的 exportedtrue,我看了一下都开了,还不行

在板子上,通过 hilog 命令查看日志,查看报的错:

hilog &
aa start -a EntryAbility -b com.bensyz.myapplication

我们会看到

03-12 15:28:07.302   905  1127 E C01300/Ability: [ability_manager_service.cpp(CheckDebugAppInDeveloperMode:9026)]Debugging application cannot run in non developer mode.
03-12 15:28:07.302   905  1127 E C01300/Ability: [ability_manager_service.cpp(StartAbilityInner:861)]Generate ability request local error.
error: failed to start ability.

参考 将板子配置成 developer mode

code:9568404

如果勾选了 Support HarmonyOS,会需要你登录华为帐号,同时编译完会报

Install Failed: error: failed to install bundle.
code:9568404
error: delivery sign profile failed

参考配置签名密钥,重新点击 Automatically generate signature 来重新生成密钥。

code:9568332

Install Failed: error: failed to install bundle.
code:9568332
error: install sign info inconsistent.

同名包不同的签名,在板子上卸掉即可
